Depending on the robot intelligent production mode to realize computer controland electrical automation technology, is the rapid effects of human socialproduction and life. Before long, the domestic top architectural design institutes -- College of architecture and urban planning of Tongji University staged a robotaided architectural exhibition wonderful, Shanghai Xin Zhi Robot System Co Ltdas technology and equipment exhibition organizers support partner, articles of KUKA robot was invited to assist the organizers the successful implementation of the concept of robot architecture designer.

Recently, the "digital future" DigitalFUTURE Shanghai2014 exhibition held successfully. The exhibition shows the final results of Shanghai "digital future"design workshop series of academic activities: expand the robot application ofprecedent in domestic architectural design, try the possibility of application of robot aided architectural design.

The exhibition around the "building structure performance based robot" (RoboticFabrication Based on Structural Performance) as the theme, the main concern ofthe robot, robot timber structure, brick structure bionic robot structure printing,metal processing, robot robot gas model and 3D concrete nonlinear architectureprint issues.

Robot construction division team, the opening of the exhibition group photo

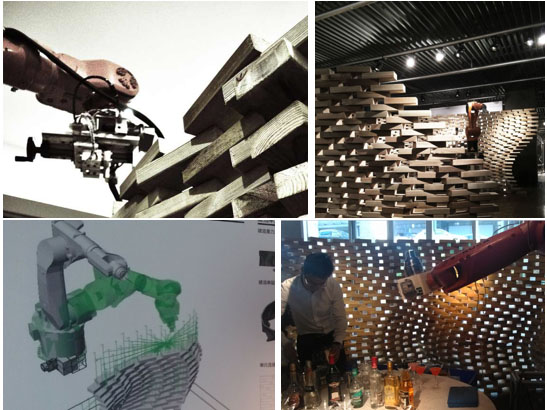

The robot -- "robot brick brick structure"

KUKA KR6 robot R700 small industrial robot in this case the use of 1 sets of 6joint implementation mechanism as a brick structure, mounted on the mobilerobot brickwork table with positioning mechanism, can achieve step by step in blocks of brick structure wall structures, and eventually formed a stable and continuous splicing section and brick series with strong visual impact.

I

Be overweeningly ambitious robot in front after completion of brick structure, anda celebration of Bartending prepared in assisting the bartender.

Metal processing -- robot

Light and thin plate is not seen people as we imagine ordinary. In the thin in amillimeter in the material force according to the point of application of differentstructures with different performance.

This project was aimed at the sheet topology calculation and optimizationthrough the machine automation into Jimei and structure performance in one of the articles of daily use digital technology: table. A completely have no bearingproperties of thin aluminum plate after the machine after knocking reached itsunder given conditions the optimal structure performance. Machining precisiongives us a designer from digital simulation to the actual construction of the most perfect conversion. The so-called structural performance machine building based on.

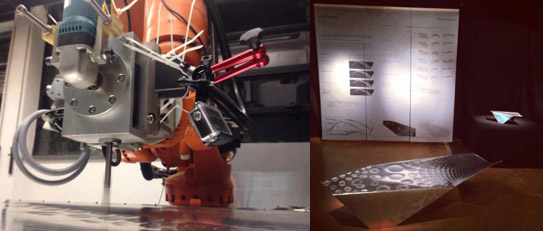

In this case the use of 1 sets of KUKA robot KR90, with mechanical embossingmodule, trajectory through space designers prepared, constructed on the surface of the metal plate processing three-dimensional.

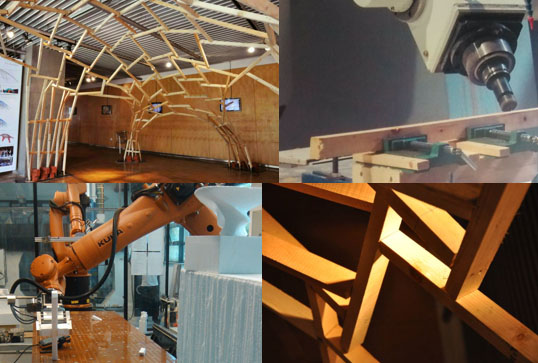

Timber - Robot

The whole structure is composed of seven units, while the seven unit follows the same logic, but the rod length, inclination angle and the overlapping position of each are not identical, and precise processing capability of the robot can solve these problems well, which makes the structure of the device intended to get the perfect show.

In this case the robot indirectly involved in the timber arch structure of the building, the installation of milling tool robot after the wooden edge angleprocessing, tenon processing operations, and in the end, forming assist designers to assemble the wooden arch construction process.

Combined with Chinese traditional timber and digital construction technology will have what amazing creation? In three weeks time, through the digital software and robotic technology, the arch, reciprocal structure and constructed by combining complete expression of the actual construction from design concept tothe whole process.

The robot with high speed electric spindle and milling tool, multi axis three-dimensional engraving machine can be composed of 1 sets of high flexibility,large scope of operation, can make the large Asherahs sculpture, model making,see Hin Chi robot: robot carving (http://www.think-automation.com/showpro.asp? Id=60) column.

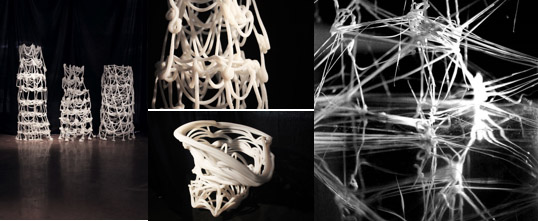

Robot composite 3D print

The ways of constructing dependence is a bottom-up self construction, the role of a variety of factors will impact the course construction, which brought about many unexpected attribute and surprise for results. In the construction process,we use a feedback system based on robot, the robot can rapidly with plasticmaterials in the vertical direction force type and evaluation. This techniquethrough a chance to reach the final for the results of modeling, provides agenerating optional, use third ways to create advantages and disadvantageswere accidentally two element model of the. This contingency we use in theformal construction camp to find way.

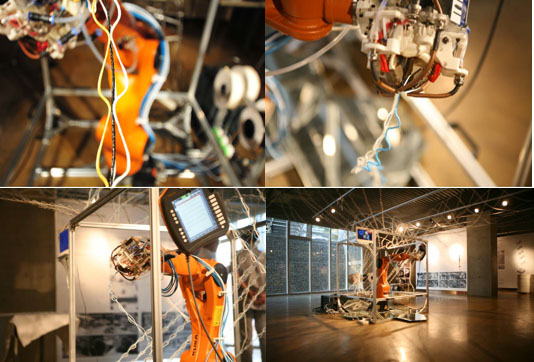

Robot bionic structure print

Space 6D printing device is a combination of KUKA robot and 3D printing technology innovation. Provide a basis of 3 dimensional molding print space, 6D refers to the 6 axis robot, provides print path flexible. 3D print mode based on traditional horizontal slice print, and then laminated to form the overall model,this process only reflects the forming state model, and does not reflect thenatural growth of structure and construction logic.

KR 6R700 robot is devoted to a "bionic architecture design".

Shanghai Xin Zhi Robot System Co Ltd is one of the leading domestic robotautomation company, Xin Zhi robot has been accumulated for a 200+ roboticautomation system, and established a good cooperative relationship with Tongji University, Shanghai Jiaotong University and many other domestic famous universities and research institutions.

More about the advanced robot application technology,Robotics Solution, welcome to come to consult the discussion, Shanghai Xin Zhi robotic company in Kunshan Factory Tel: 0512-50315123.
